## 2A What is a Mesh

Mesh = *Simplicial Complex*.

- Abstract vs. Geometric
- Oriented, Manifold Simplicial Complex.
*Cell Complex*- Poincare Dual

- Data structures
- adjacency list
- incidence matrix
- half edge

Mesh / Topological Space (Discrete/Cont.)

### Convex Set

ex. star, triangle, bottle, dodecahedron

*Defn* A subset $S \subset \mathbb{R}^n$ is *convex* if for every pair of points $p,q \in S$ the line segment between $p$ and $q$ is contained in $S$

### Convex Hull

*Defn* For any subset $S \subset \mathbb{R}^n$ its *convex hull* `conv(S)`

is the smallest convex set containing $S$, or equivalently, the intersection of all convex sets containing $S$.

ex. The convex hull of $S := \{(\pm 1, \pm 1,\pm 1) \} \subset \mathbb{R}^3$ is a cube with vertices S.

### Simplex

Roughly speaking, a *k-simplex* is a point, a line segment, a triangle, a tetrahedron, ...

The shape defined by k+1 vertices.

*Defn* A collection of vectors $v_1, \dots, v_n$ is *linearly independent* if no vector can be expressed as a linear combination of others. i.e There is no collection of $a_1, \dots, a_n \in \mathbb{R}$ such that $v_j = \sum_{i \neq j} a_i v_i$ for any j.

*Defn* A collection of points $p_0, \dots, p_k$ are *affinely independent* if the vectors $v_i := p_i - p_0$ are linearly independent.

*Defn* a *k-simplex* is the convex hull of k+1 affinely independent points, which we call its *vertices*.

Note: A 2-simplex can exist in a vector space V of dim(V) > 2, or in general a k-simplex can only exist in a vector space of dimensionality at least k.

### Barycentric coordinates

Any point $p$ in a k-simplex $\sigma$ can be expressed as a weighted combination of vertices, where the weights sum to 1.

$\sigma = \{\sum_{i=0}^{k} t_i p_i | \sum_{i=0}^kt_i = 1, t_i \geq 0 \forall i\}$

Also called a *convex combination*.

ex. The *standard n-simplex* is the collection of points:

$\sigma := \{(x_0, \dots, x_n) \in \mathbb{R}^{n+1} | \sum_{i=1}^n x_i = 1, x_i \geq 0 \forall i\}$

also known as the "probability simplex"

### Simplicial Complex

Roughly speaking, a *simplicial complex* is a "A bunch of simplices".

*Defn* A *face* of a simplex $\sigma$ is any simplex whose vertices are a subset of the vertices of $\sigma$.

e.g. The faces of a triangle include the edges, vertices, and the triangle itself. The empty is set is also a face.

*Defn* A *(geometric) simplicial complex* is a collection of simplices where:

- The intersection of any two simplices is a simplex
- Every face of every simplex in the complex is also in the complex.

*Defn* Let $S$ be a collection of sets. If for each $\sigma \in S$ all subsets of $\sigma$ are contained in $S$, then $S$ is an *abstract simplicial complex*. A set $\sigma \in S$ of size k+1 is an *(abstract) simplex*.

This is a looser restriction than the geometric definition and not equivalent.

ex. Any undirected graph is a simplicial 1-complex.

### Application: Topological Data Analysis

Try to understand data in terms of *connectivity* instead of geometry.

ex. Persistent Homology Start with a collection of points, grow "balls" around each point. Connect (k+1) overlapping balls into k-simplex. Track birth and death of features like connected components, holes, etc. Features that persist for a long time are likely "real".

### Anatomy of a Simplicial Complex

*Closure*: smallest simplicial complex containing a given set of simplices.
*Star*: Union of simplices containing a given subset of simplices.
*Link*: Closure of the star minus the star of the closure.

Notation:
For 1-complexes write $G = (V,E)$
For 2-complexes (triangle meshes) we often write $K = (V,E,F)$ where F is a triangle not to be confused with the *face* above.

### Oriented Simplicial Complex

Basic idea: Does a 1-simplex {a,b} go from $a \rightarrow b$ or $b \rightarrow a$?
Instead of an unordered set {a,b}, use an *ordered tuple* (a,b) or (b,a)
Important for calculating integrals.

For a 2-simplex, orientation given by "winding order" of vertices. (a,b,c) != (a,c,b) (a,b,c) = (b,c,a) = (c,a,b) (a,c,b) = (c,b,a) = (b,a,c) The equivalence class of 3-tuples where tuples are equivalent if they are related by a circular shift.

*Defn* An oriented k-simplex is an ordered tuple, up to even permutation.

Hence, always 2 orientations*: odd, or even permutations.
Convention: $(0, \dots, k)$ is *positive*, otherwise *negative* orientation.

*An oriented 0-simplex is always positively oriented.

### Oriented Simplicial Complex

*Defn* An *orientation* of a simplex is an ordering of its vertices up to even permutation; one can specify an oriented simplex via one of its representative ordered tuples. An *oriented simplicial complex* is a simplicial complex where each simplex is given an ordering.

*Defn* Two distinct oriented simplices have the same *relative orientation* if the two (maximal) faces in their intersection have *opposite* orientation.

Note: Thinking about a strip from the round face of a cyllinder, a triangulation should have the same relative orientation, whereas a triangulation of the mobius strip would have an inconsistent relative orientation along one of its 2-simplices.

## 2B Introduction to Manifolds

Very rough idea: manifolds are a notion of "nice" space in geometry.

Key idea: a manifold *locally* appears like $\mathbb{R}^n$

### Simplicial Manifold

*Defn* A simplicial k-complex is *manifold* if the **link** of every vertex looks like a (k-1)-dimensional sphere.

Aside: How hard would it be to check if a given simplicial complex is manifold? k=1 -> is the complex just a collection of closed loops? k=2 -> is the link of every vertex a closed loop? k=3 -> is each link a 2-sphere? Just check $V-E+F = 2$ (Euler's formula) k=4 -> is each link a 3-sphere? It's known to be NP

ex. Manifold triangle mesh. (k=2) -> Every edge is contained in exactly two triangles, or just one along the boundary. &&-> every vertex must be contained in a single "loop" of triangles. Or a single "fan" along the boundary.

Why is a manifold mesh desirable? By analogy: 2D-images.

- A regular grid does everything we desire.
- Very simple -> always has 4 neighbors.

Manifold meshes are similar.
Manifold meshes do most things we desire. Very simple -> (predictable neighborhoods)
leads to nice *data structures*

### Topological Data Structures

#### Adjacency List

Store only top-dimensional simplices. ex. "hollow tetrahedron" (vertices 0,1,2,3) 0 2 1 0 3 2 3 0 1 3 1 2

Pros: simple, small storage cost Cons: hard to iterate over, e.g. edges. expensive to access neighbors. (e.g. "List of all edges touching a vertex")

#### Incidence Matrix

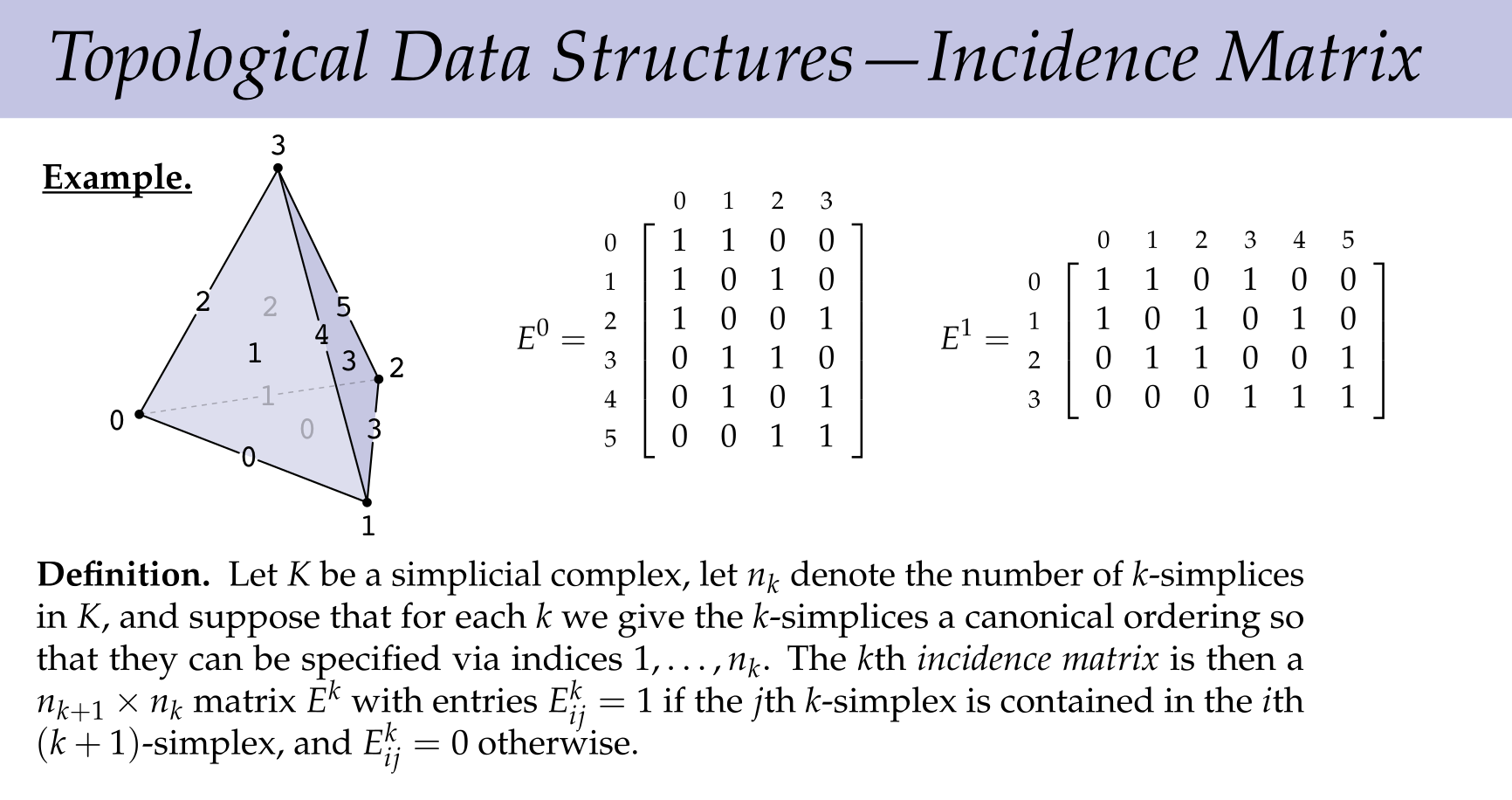

$E_0$ has rows of edges, columns of vertices. $E_1$ rows are triangles, columns are edges.

*Defn* Let $K$ be a simplicial complex, let $n_k$ denote the number of k-simplices in $K$, and suppose for each $k$ we give the k-simplices a canonical ordering so that they can be specified via indices $1, \dots, n_k$. The kth *incidence matrix* is then a $n_{k+1} \times n_k$ matrix $E^k$ with entries $E_{ij}^k = 1$ if the jth k-simplex is contained in the ith (k+1)-simplex and 0 otherwise.

Aside: complexity. Not useful if using dense matrix. Useful to have sparse data structure.

e.g

```
[[4 2 0]
[0 0 3]
[0 7 0]]
```

`map<(row,col), val>`

is useful for lookup/set. Bad for matrix multiplication.`vector<linkedlist<(col,val)>>`

where`vec[row]`

- "Compressed column format"
- values: [4,2,7,3]
- row indices: [0,0,2,1]
- cumulative entries by column: [1,3,4]

##### Signed Incidence Matrix

A *signed incidence matrix* is an incidence matrix where the sign of each nonzero entry is determined by the relative orientation of the two simplices corresponding to that row/column.
(Closely related to *discrete exterior calculus*)

#### Half Edge Mesh

Split each edge into oppositely oriented *half-edges*.

```
struct HalfEdge{
HalfEdge* twin;
HalfEdge* next;
Vertex* vertex;
Edge* edge;
Face* face;
}
// combine with he->twin to get full edge
struct Edge{
HalfEdge* halfEdge;
};
// follow he->next until you return
struct Face{
HalfEdge* halfEdge;
};
// look at he->twin->next
struct Vertex{
HalfEdge* halfedge;
}
```

*Defn* Let $H$ be any set with an even number of elements, let $\rho: H \mapsto H$ be any permutation of H, and let $\eta : H \mapsto H$ be an involution without any fixed points, i.e $\eta \circ \eta = id$ and $\eta(h) \neq h ~ \forall h \in H$. Then, $(H, \rho, \eta)$ is a *half edge mesh*, the elements of $H$ are called *half edges*, the orbits of $\eta$ are *edges*, the orbits of $\rho$ are faces, and the orbits of $\rho \circ \eta$ are *vertices*. (Slides are wrong/follow different conventions)

($\eta$ is the `twin`

and $\rho$ is the `next`

operation.)

Fact: Every half edge mesh describes a compact oriented topological surface (without boundary).

#### Quad Mesh

Store sym(e), rot(e). Looks somewhat like delaunay?

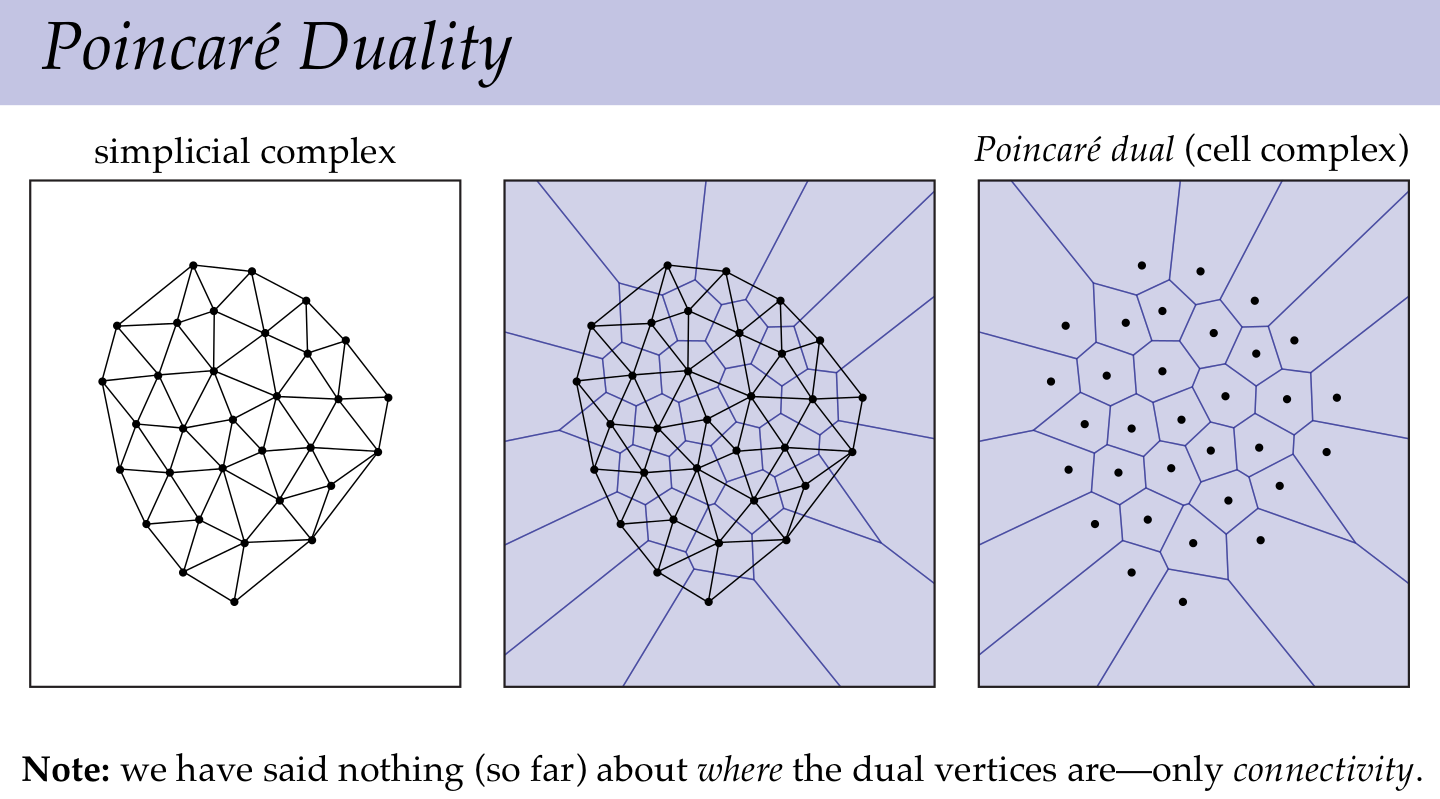

Useful for *dual complex*. (Some isomorphism from mesh to a dual mesh)

a | b | c | d |
---|---|---|---|

Primal mesh | 0-simplex (vertex) | 1-simplex (edge) | 2-simplex (tri) |

Dual mesh | 2-cell (hexagon) | 1-cell (dual edge/rot(e)) | 0 cell (point) |

Motivation: record measurements of flux *through* versus *along* elements.

やっぱドロネーっぽいけど幾何については何も指定してない。

## Reading 2

Lecture Notes Section 2.

基本的に講義内容と同じ。 *pure k-simplicial complex* なる概念の登場。
Every simplex $\sigma \in K$ is a face of a k-simplex. 的な感じ。

Pure k-subcomplex にはboundaryとinteriorという概念がある Boundary of $K'$ is the closure of the set of all simplices $\sigma$ that are proper faces of exactly one simplex of $K'$. The interior is $K' \backslash bd(K')$.
